About this build

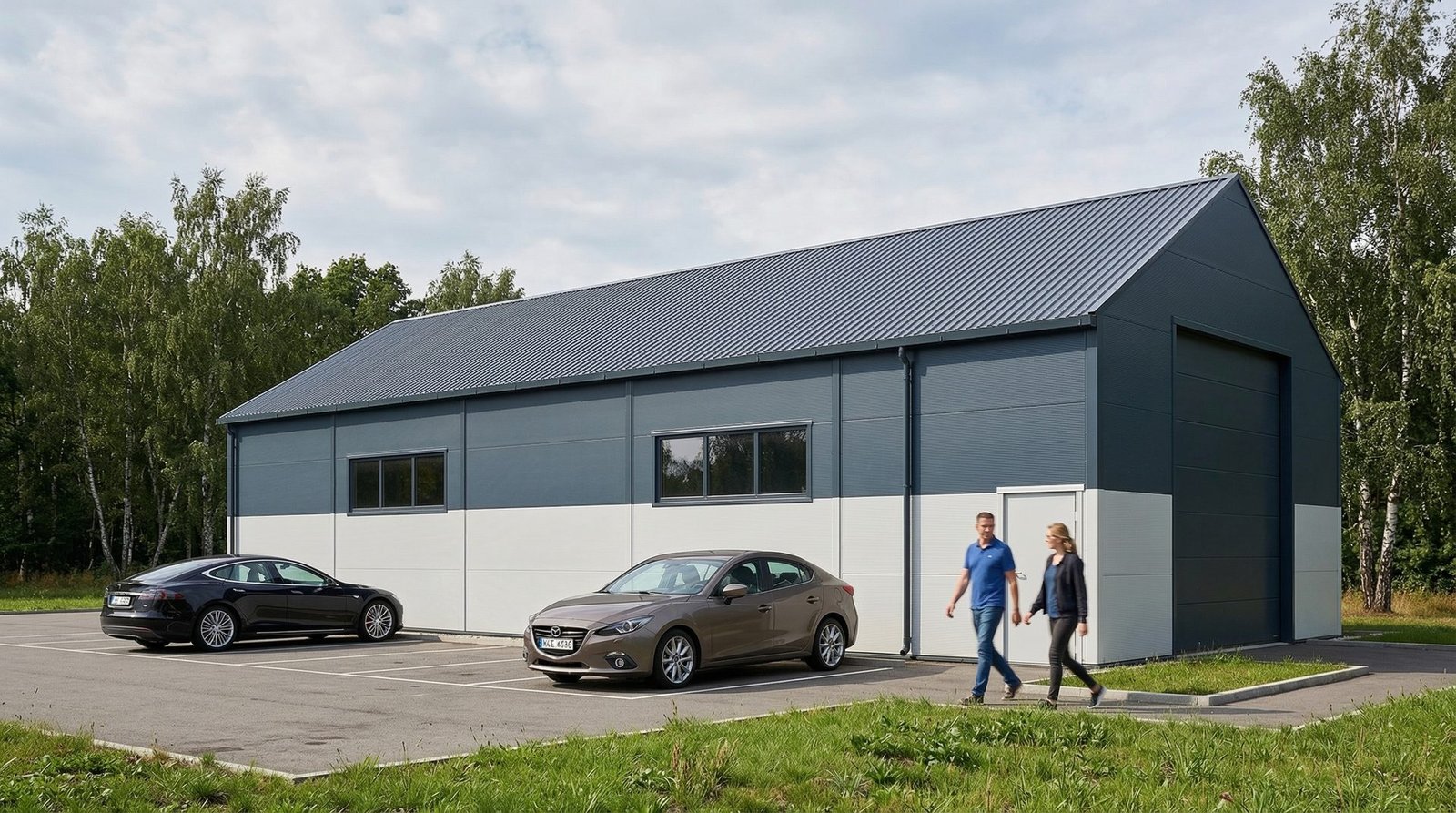

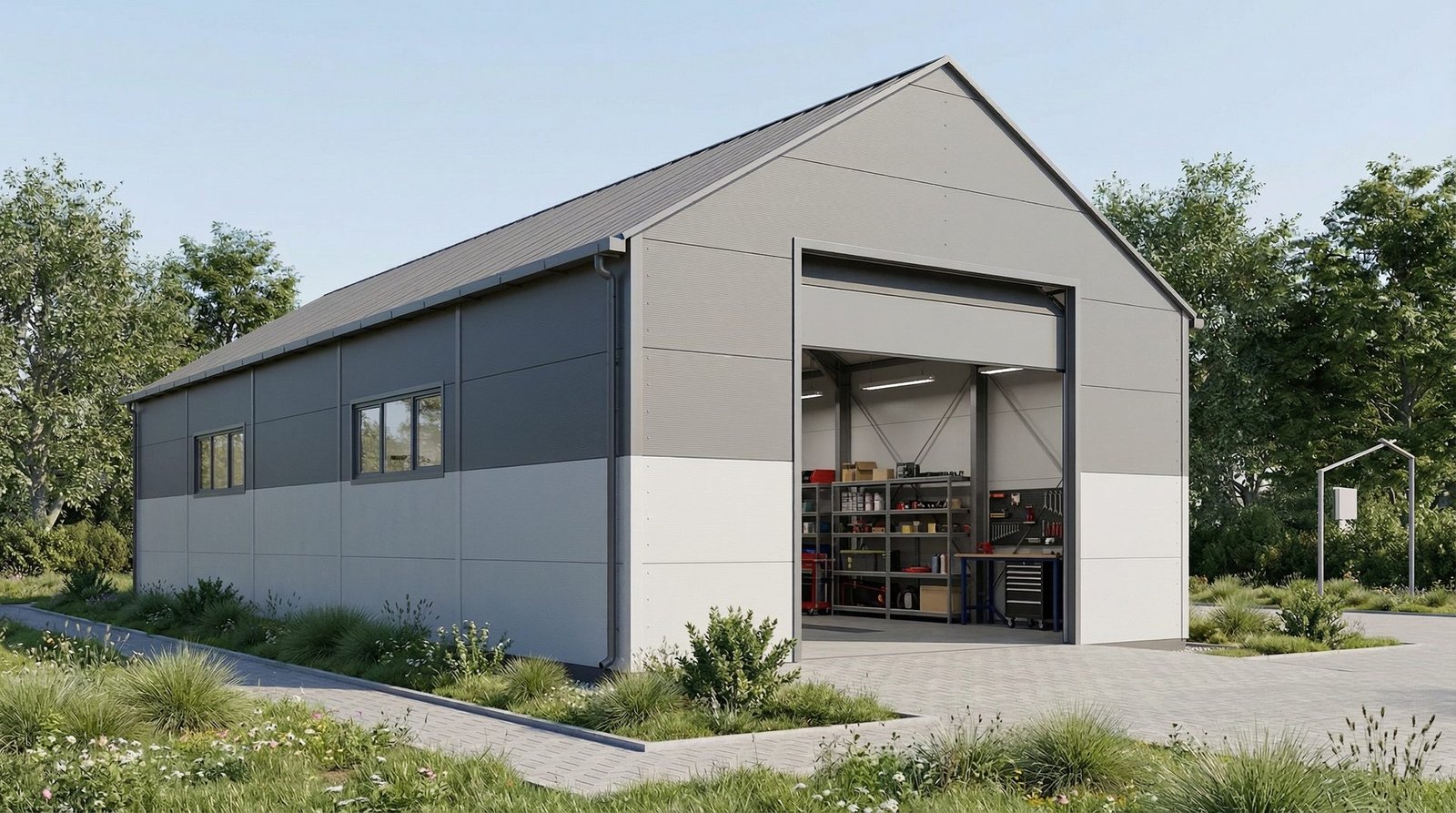

Technical design of a workshop garage in a steel structure with a built-in inspection pit, founded on a 0.2 m concrete foundation slab. Building dimensions 20.0 × 8.0 m with a ridge height of +6.43 m, with a gable roof of 30° pitch.
Roof covering and external walls of 0.1 m PIR sandwich panel. Load-bearing structure of steel profiles and I-beams. The design includes an inspection pit measuring 6.0 × 1.2 m and 1.70 m deep.
Designed in accordance with PN-EN standards (Eurocodes). The building is equipped with a 4.0 × 4.2 m garage door, an entrance door and 4 windows at a height of +2.00 m.
